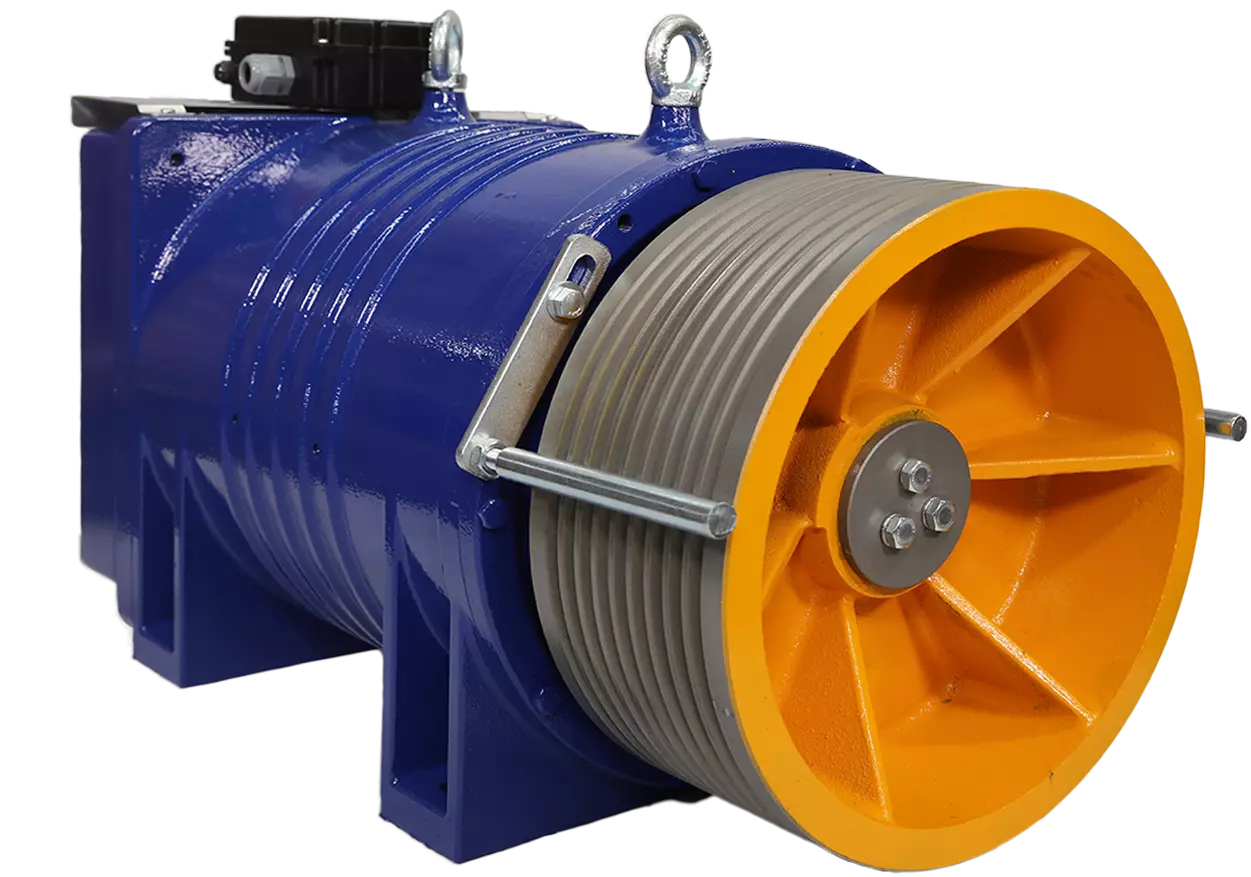

AK 2-6

Açıklama

Askı Tipi 2:1 Statik Yük 9000 kg
Suspension Static Load
Makine Tipi Hız (m/s) Kapasite (kg) Güç (kW) Kasnak Ölçüleri Akım In Frekans Devir (rpm) Tork (Nm)
Machine Type Speed (m/s) Capacity (kg) Power(kW) Pulley Dimension Current Frequency Revolution (rpm) Torque (Nm)
AK 2-6 0,63 2500 9,6 320x14x8 34,1 20P-12,53 75 1226
AK 2-6 1,00 2500 15,3 320x14x8 46,5 20P-19,89 119 1226
AK 2-6 1,60 2500 24,5 320x14x8 65,0 20P-31.83 191 1226
AK 2-6 2,00 2500 30,6 320x14x8 76,5 20P-39,79 239 1226
AK 2-6 2,50 2500 38,3 320x14x8 95,6 20P-49,74 298 1226
AK 2-6 0,63 2500 9,6 360X13X8 34,1 20P-11,14 67 1380
AK 2-6 1,00 2500 15,3 360X13X8 46,5 20P-17,68 106 1380
AK 2-6 1,60 2500 24,5 360X13X8 65,0 20P-28,29 170 1380
AK 2-6 2,00 2500 30,6 360X13X8 76,5 20P-35,37 212 1380
AK 2-6 2,50 2500 30,6 360X13X8 95,6 20P-44,21 265 1380
AK 2-6 0,63 2000 7,7 400x8x10 27,32 20P-10,03 60 1226
AK 2-6 1,00 2000 12,2 400x8x10 43 20P-15,92 96 1226
AK 2-6 1,60 2000 19,6 400x8x10 52 20P-25,46 153 1226
AK 2-6 2,00 2000 24,5 400x8x10 65,0 20P-31,83 192 1226
AK 2-6 2,50 2000 30,6 400x8x10 77,0 20P-39,79 239 1226
